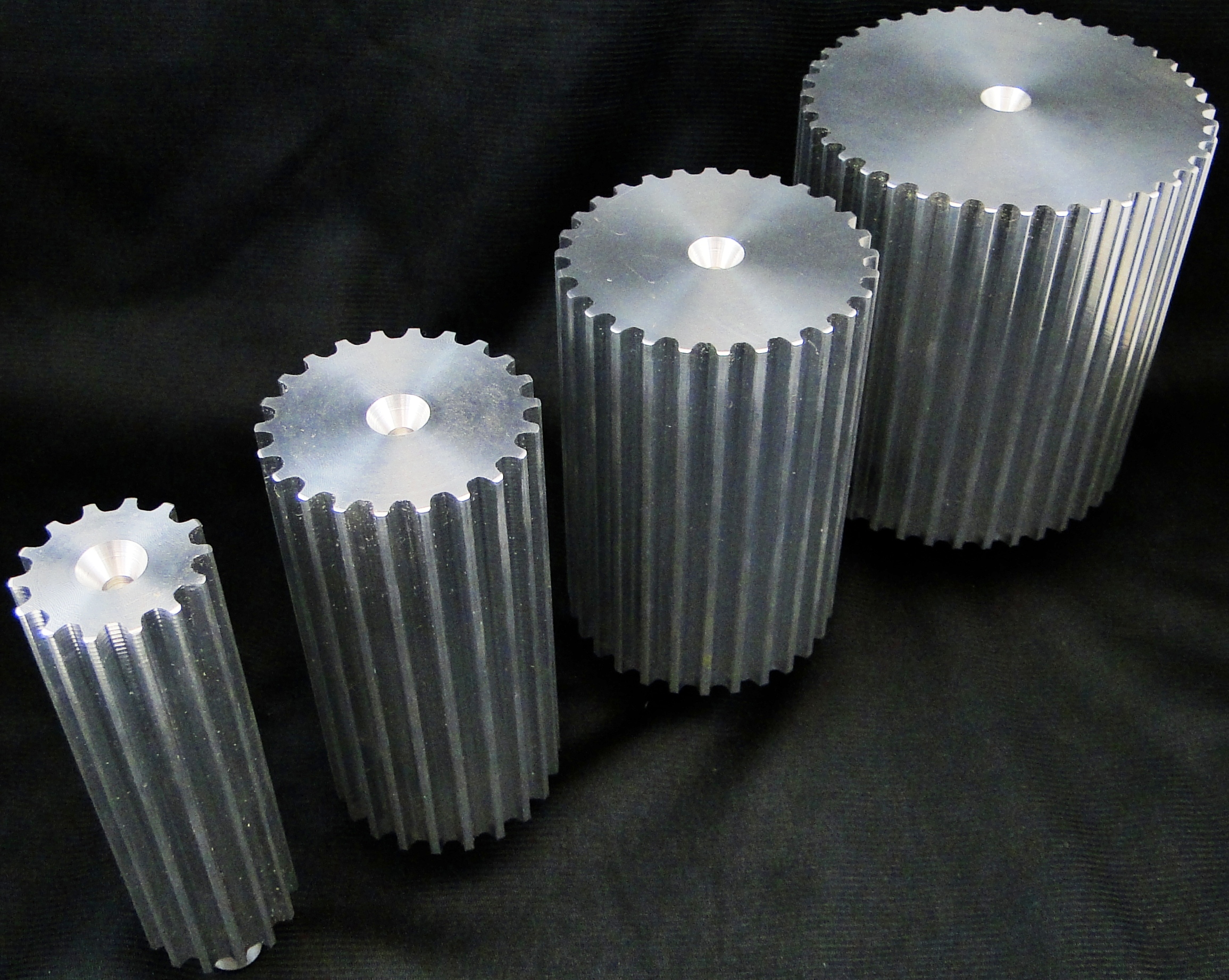

Timing Belt Pulley - Bar Stock
Timing belt pulley bar stock gives the end user the ability to construct their own belt drive pulleys. All of our cog pulley bar stock is CNC manufactured to the strict tolerances dictated by Gates, ContiTech and current ISO standards. Cog pulley bar stock is available in both steel and aluminum in usable lengths of 108mm (4.25”). Currently available belt drive pulley bar stock includes the 8mm pitch HTD tooth profile and also the 8mm pitch PolyChain GT tooth profile. 8mm pitch timing belt pulley bar stock in both of these tooth profiles is available from 14 tooth through 40 tooth in aluminum and steel.
Features:
- 8mm HTD, (14 Tooth through 40 Tooth) , Timing Belt Pulley Aluminum Bar Stock
- 8mm HTD, (14 Tooth through 40 Tooth) , Timing Belt Pulley Steel Bar Stock
- 8mm PolyChain GT, (14 Tooth through 40 Tooth) , Timing Belt Pulley Aluminum Bar Stock
- 8mm PolyChain GT, (14 Tooth through 40 Tooth) , Timing Belt Pulley Steel Bar Stock
Please note when machining timing belt pulley bar stock we recommend fixturing the bar stock on the TOOTH O.D. because the HUB O.D. is not perfectly concentric to the TOOTH O.D. Proper fixturing of the bar stock requires the fixturing jaws to be radiused to the TOOTH O.D. to maintain concentricity.
